iPod Mini disassembly and battery replacement



All day at work I have to listen to Bolton Dan (bald server man) banging on about how he likes to spend his evenings playing air guitar to his Status Quo and Meatloaf LP's. Fortunately I can flush his 70's rock nonsense from my brain with the aid of my trusty iPod Mini and collection of crackin' electronica MP3's...


... well, I could until the battery packed up.

Fortunately replacements are easy enough to source from the internet and fitting isn't too scary if you have ten minutes and a trusty blade.

Step 1. Use the trusty blade to prise the top off the iPod. It's held on by glue and should peel off without too much trouble. Just be sure to note the position of the HOLD switch when you take the top off as the switch top will need to match the switch position when you reassemble later.

Step1

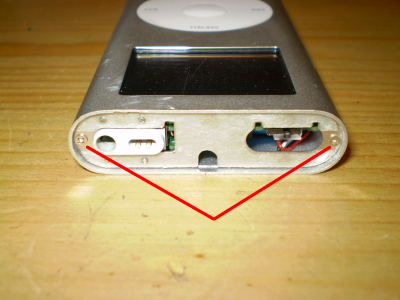

Step 2. Undo the two small Phillips screws.

Step2

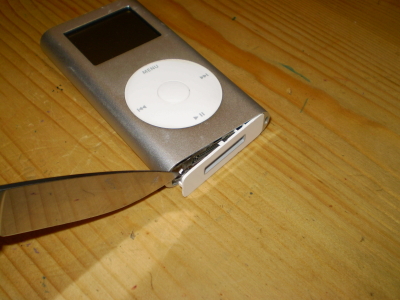

Step 3. Similar to step1 - but this time prise off the bottom of the Mini. Again, it's held on by glue.

Step3



Step 4. There are four springy clips holding the metal base in place. Bend them slightly inwards one at a time and....

Step4

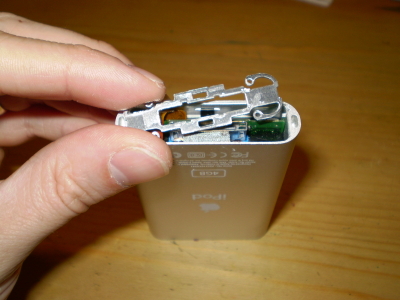

Step 5. ...hey presto, the metal base lifts out.

Step5

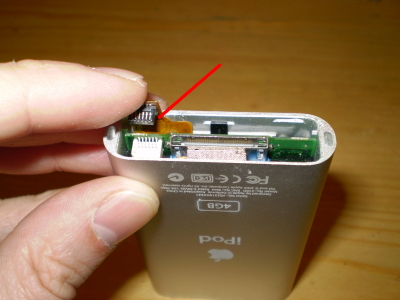

Step 6. Gently lift out the connector that does a fine job of connecting the thumbwheel to the PCB.

Step6

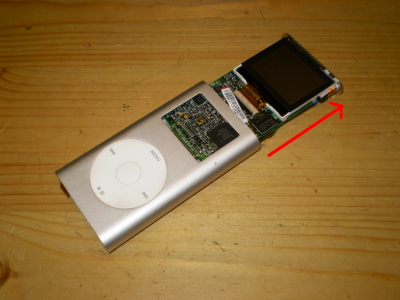

Step 7. Carefully slide the guts up and out of the casing.

Step7

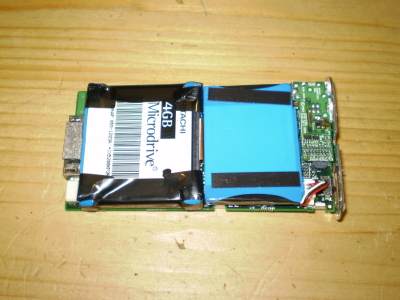

Step 8. Flip over the PCB to reveal the microdrive and battery.

Step8

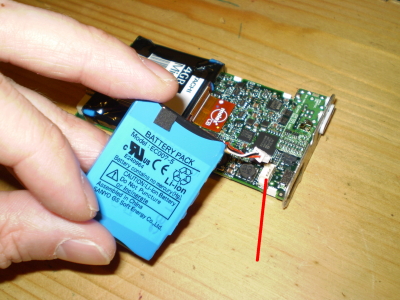

Step 9. Lift up and disconnect the battery.

Step9



Plug the new battery into place and reverse the procedure to reassemble. When sliding the PCB back into the case, do so gently and without forcing it as it's a tight fit and there is the risk that a tiny surface mount component could get swiped off the board. Again, check the HOLD switch is aligned with the button top when refitting the top of the Mini. The top and bottom should re-adhere to the glue that originally held them in place.

Dammit, Dan's started humming some stoopid Slade tune.... I'd better get this thing on charge...
